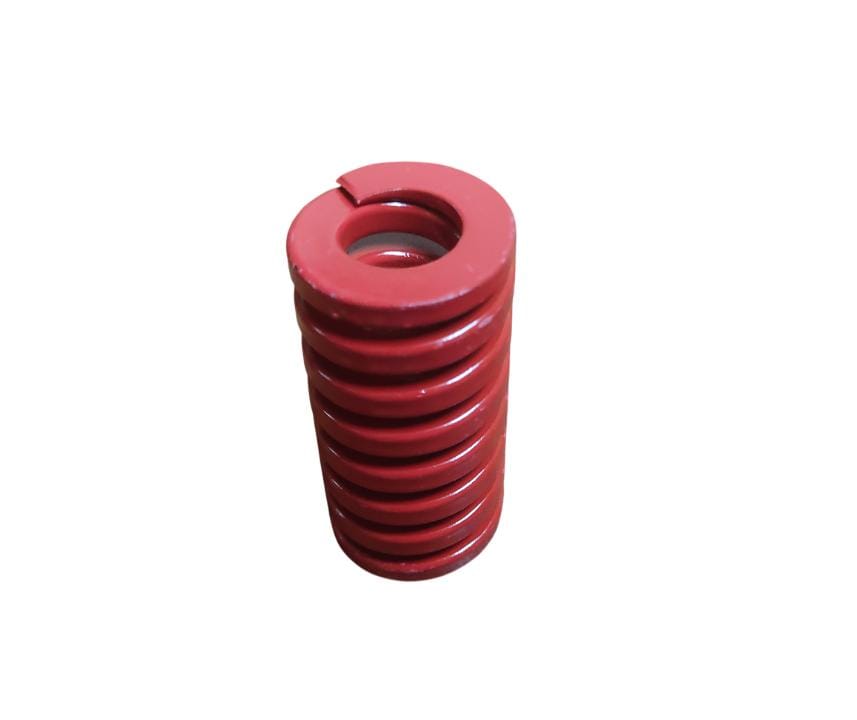

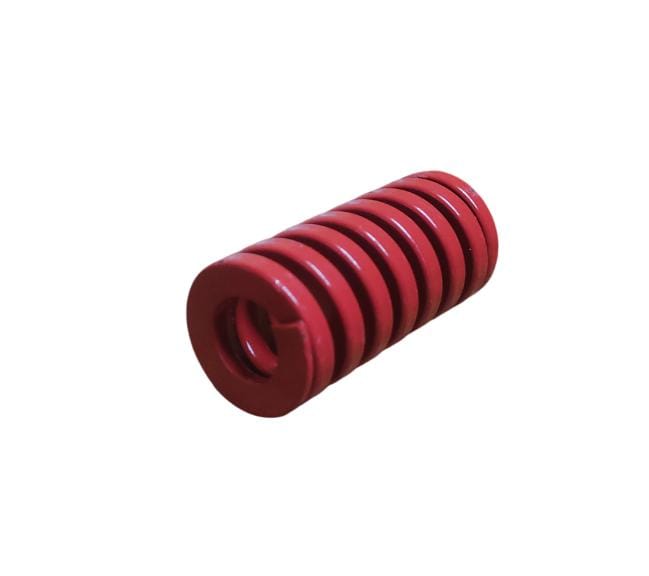

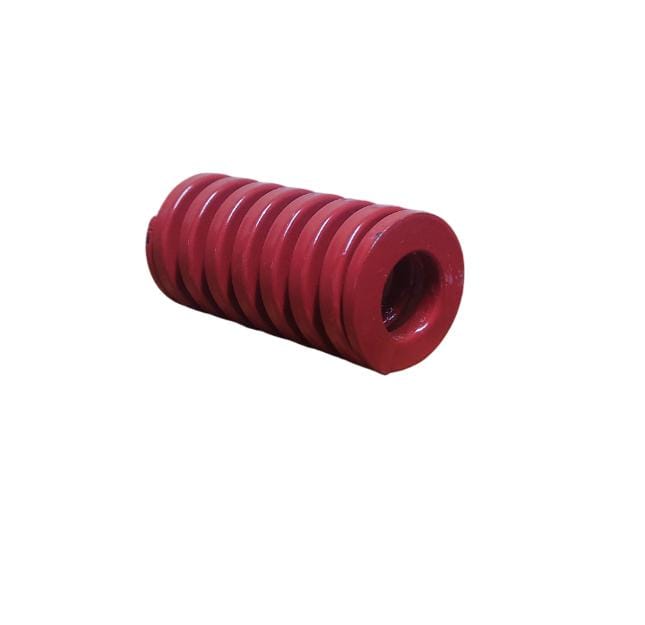

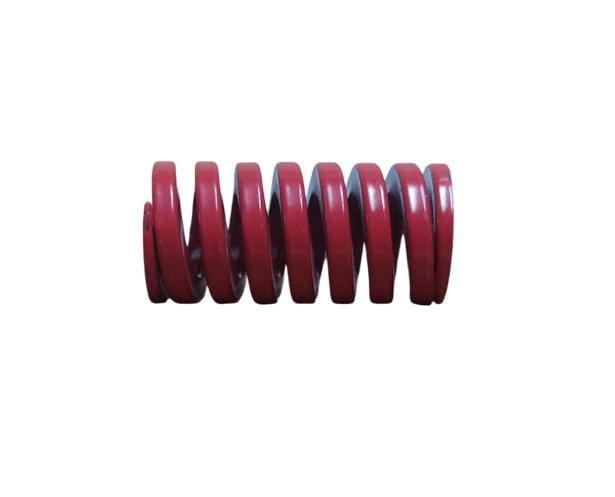

Rectangular Wire Die Spring as per ISO 10243, Heavy Duty Load for precision dies and mould tools, designed for high load and controlled deflection.
This heavy-duty die spring conforms to ISO 10243 dimensional and performance standards, designed for use in high-load die sets, press tools, jigs, and fixtures. The spring is constructed from high-tensile chromium-silicon alloy steel, precision cold-coiled and stress-relieved to ensure consistent elastic modulus and fatigue resistance under repeated compression cycles.
| Feature | Value |
|---|---|
| Colour code | Red (R)Heavy Load |
| Outer Diameter | 63 mm |
| Inner Diameter | 38 mm |
| Free Length (L∅) | 254 mm |
| Wire Section (Thickness) | 12.3 (Rectangular) |
| Spring Constant (k) | 15.8 kgf/ mm |
| Maximum Load (Fmax) | 1607 kgf |
